- 3 Year (36 Months) Warranty!
- CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
- 4 3/4″ – 47 1/4″ Lifting Height
- Each Platform 62 5/8″ Length and 20 1/2″ Width

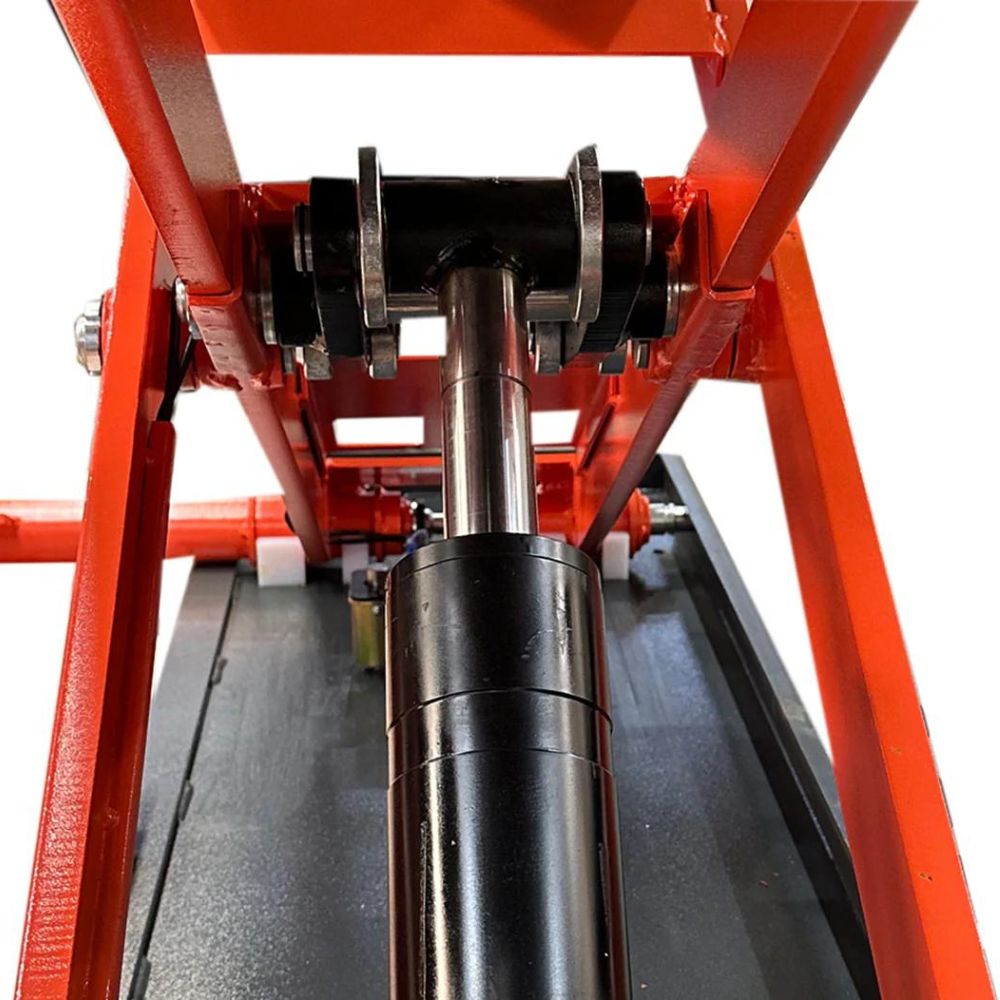

- Dual 3 9/16″ Hydraulic Cylinder Structure

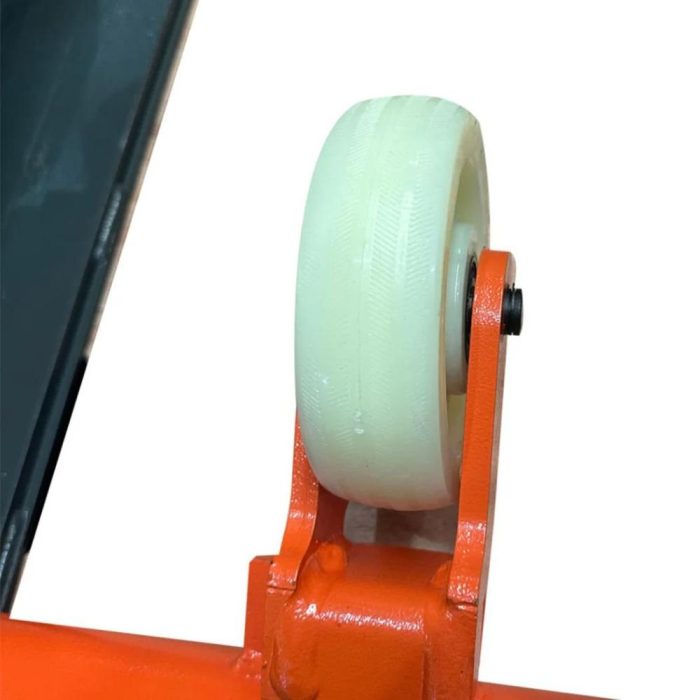

- Mobile Castor Dolly Included to Easy Movement

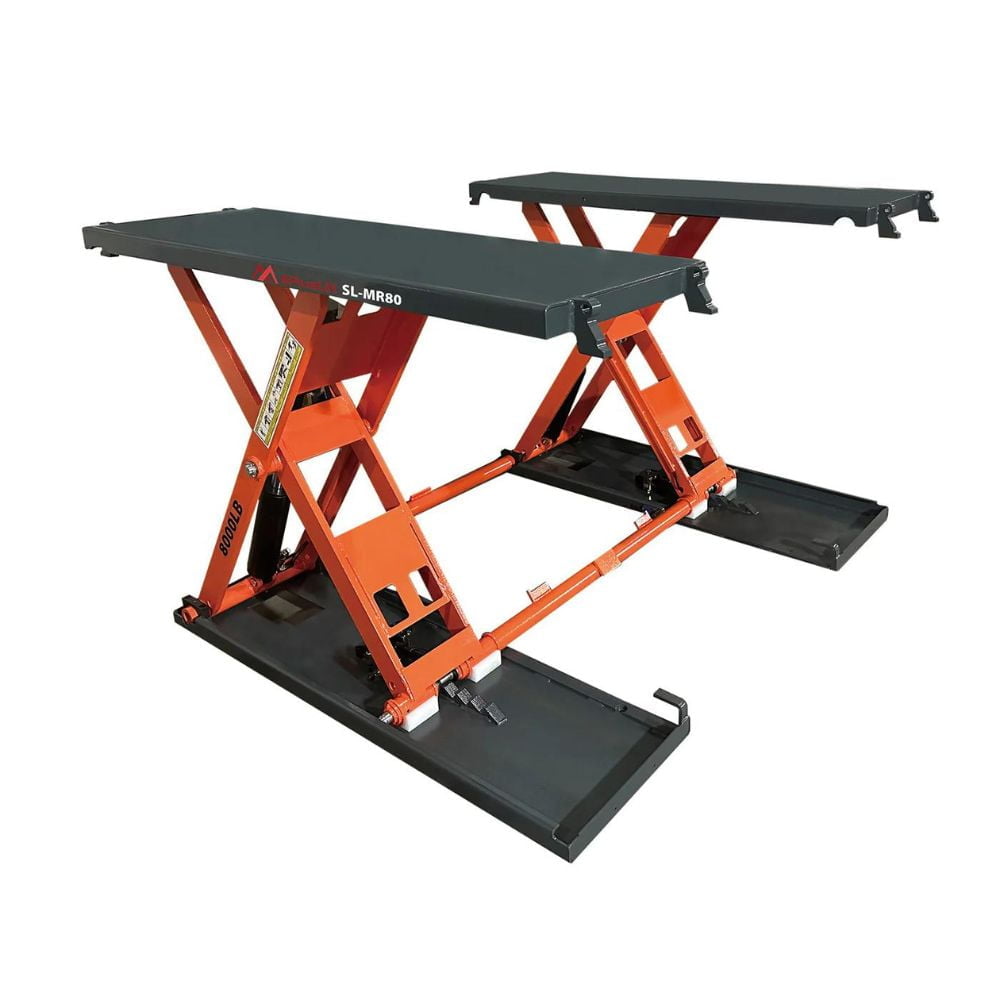

APlusLift SL-MR80 mid-rise scissor lift (auto hoist) is one of the most affordable scissor lift with 8,000 LB Heavy Duty Design. SL-MR80 is the ideal scissor lift for low ceiling or adding a bay for seasonal increases in business. It provides a good working height for tire service, detailing, brakes and body work for the shop. Quick set up time and an extended raised height. It is built with quality materials and good workmanship. EVERY PART IS FULLY TESTED. The car lift is comparable to Known High-End Brands. Suggestions to improve our products and service are always welcome!
Free shipping to commercial address (in a business zone) with forklift (or similar) on-site, or free pickup at nearby terminal. Residential addresses with liftgate (curbside only; no placement inside a building or backyard): $110. See shipping policy below for limited access/remote/high-cost areas.
Warehouse Pickup Locations (Contact Us for $200 Discount): Tacoma (WA).
| Specifications and Features | |||||||||
| Model | SL-MR80 (This Model) |
SL-MR66 (for Comparison) |
HW-SL6600X (for Comparison) |
||||||
| Manual | SL-MR80 Manual | SL-MR66 Manual | HW-SL6600X Manual | ||||||
| Style | Mid-Rise Scissor Lift with Two Platforms | Mid-Rise Scissor Lift with Two Platforms | Portable Mid-Rise Scissor Lift | ||||||
| Certificate | CE Certified | CE Certified | CE Certified | ||||||
| Warranty | 3 Year (36 Months) Warranty | 3 Year (36 Months) Warranty | 3 Year (36 Months) Warranty | ||||||
| Lock Release | Electric | Electric | Manual | ||||||
| Hydraulic Cylinder | Dual 3 9/16″ Cylinders | Dual 2 7/8″ Cylinders | Dual 3 1/4″ Cylinders | ||||||
| Lifting Capacity | 8,000 LB | 6,600 LB | 6,600 LB | ||||||
| Overall Length | 85 1/4″ | 76 6/16″ | 55 7/8″ (Table), 88 9/16″ (with Extended Arms) | ||||||
| Overall Width | 77 1/2″ | 77 1/2″ | 39 1/2″ (Table), 65 3/4″ (with Extended Arms) | ||||||
| Minimum Lifting Height | 4 3/4″ | 4 5/16″ | 6 1/8″ | ||||||
| Maximum Lifting Height | 47 1/4″ | 39 3/8″ | 47″ without Pads, 55″ with Adjustable Screw Pads | ||||||
| Distance Between Two Platforms | 36 1/4″ | 33 7/8″ | N/A | ||||||
| Platform Size | 62 5/8″ x 20 1/2″ Each Platform | 55 15/16″ x 18 1/8″ Each Platform | 55 7/8″ x 39 1/2″ | ||||||
| Locking Heights |
|
|
|
||||||
| Operation | 24V Control Box | 24V Control Box | Control Panel on Power Unit | ||||||
| Motor | 220V Single Phase 3HP (recommend a 30A breaker) | 220V Single Phase 3HP (recommend a 30A breaker) | 110V Single Phase 2HP (recommend a 30A breaker) | ||||||
| Hydraulic Oil | 1.6 gallons AW32/AW46 (Not Included) | 1.6 gallons AW32/AW46 (Not Included) | 1.6 gallons AW32/AW46 (Not Included) | ||||||
| Time to full rise | 30 seconds | 30 seconds | 45 seconds | ||||||
| Shipping Weight | 1450 LB (Scissor Lift Crate) and 170 LB (Control Box Crate) | 950 LB (Scissor Lift Crate) and 150 LB (Control Box Crate) | 1050 LB (Scissor Lift Crate) and 150 LB (Power Unit Crate) | ||||||
| Shipping package size | 88″L x 64″W x 9″H (Scissor Lift Crate) and 49″L x 16″W x 15″H (Control Box Crate) | 76″L x 62″W x 9″H (Scissor Lift Crate) and 49″L x 24″W x 15″H (Control Box Crate) | 81″L x 40″W x 10″H (Scissor Lift Crate) and 39″L x 15″W x 15″H (Power Unit Crate) | ||||||
| Structure | Solid Steel Construction | ||||||||
| Paint Finish | Powder Coated. Color Code: Grey RAL 7016, Orange RAL 2004 | ||||||||
| Dolly | Portable Dolly Included | ||||||||
