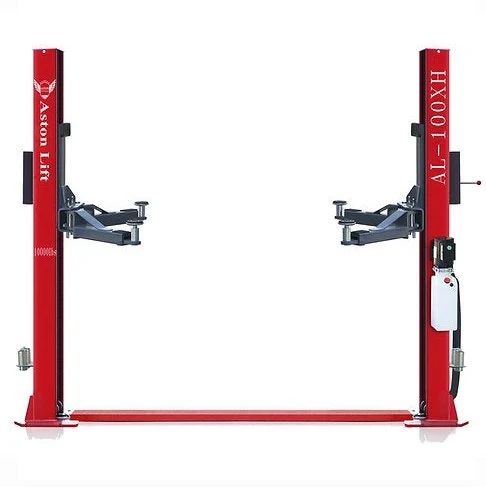

The Aston® 2-Post Car Lift 10000 lbs. Single Point Lock Release AL-100XH is engineered to simplify your vehicle maintenance tasks. With its robust features and efficient design, this lift is your essential companion for garage operations.
Powered by a 220V 60HZ 1PH 3HP motor, this lift ensures reliable performance every time. The Single Point Safety Lock Release provides effortless operation, while the super large base offers stability and support during lifting.
Safety is paramount with automatic arm lock restraints and a relief valve built into the power pump to prevent overloading. Plus, the door guards protection rubber adds an extra layer of security.
Experience smooth lifting with heavy-duty 5/16″ diameter cables and 4.56″ pulleys, reducing stress on the synchronization process and increasing cable life. The stiffened base plate and ultra-high molecular self-lubricating nylon slider ensure durability and smooth carriage movement.
Installation is a breeze with anchor bolts and mounting hardware included. With a lifting capacity of 10000 lbs. and a maximum lift height of 75″, this lift is suitable for various vehicles. The adjustable lifting and lowering times offer flexibility to suit your needs.
Upgrade your garage with the Aston® 2-Post Car Lift 10000 lbs. Single Point Lock Release AL-100XH for efficient, safe, and reliable vehicle maintenance.
- Single Point Lock Release
- Truck Adapters Included
- Lift Structure and Hydraulics CE Certified
- Aston® High-End 10,000 lbs. 2 post car lift Base Plate
Features
- 220V 60HZ 1PH 3HP MOTOR

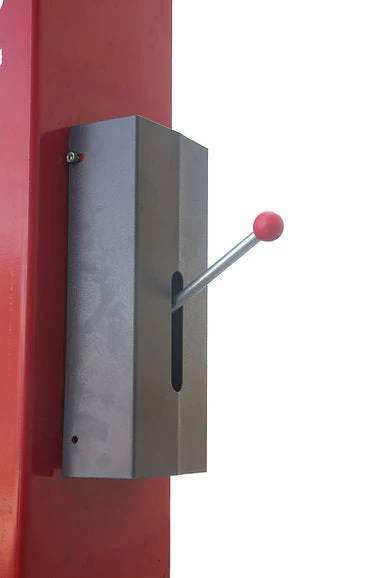

- Single Point Safety Lock Release
- Super Large Base 18.5″ x 15.36″ x 0.63″

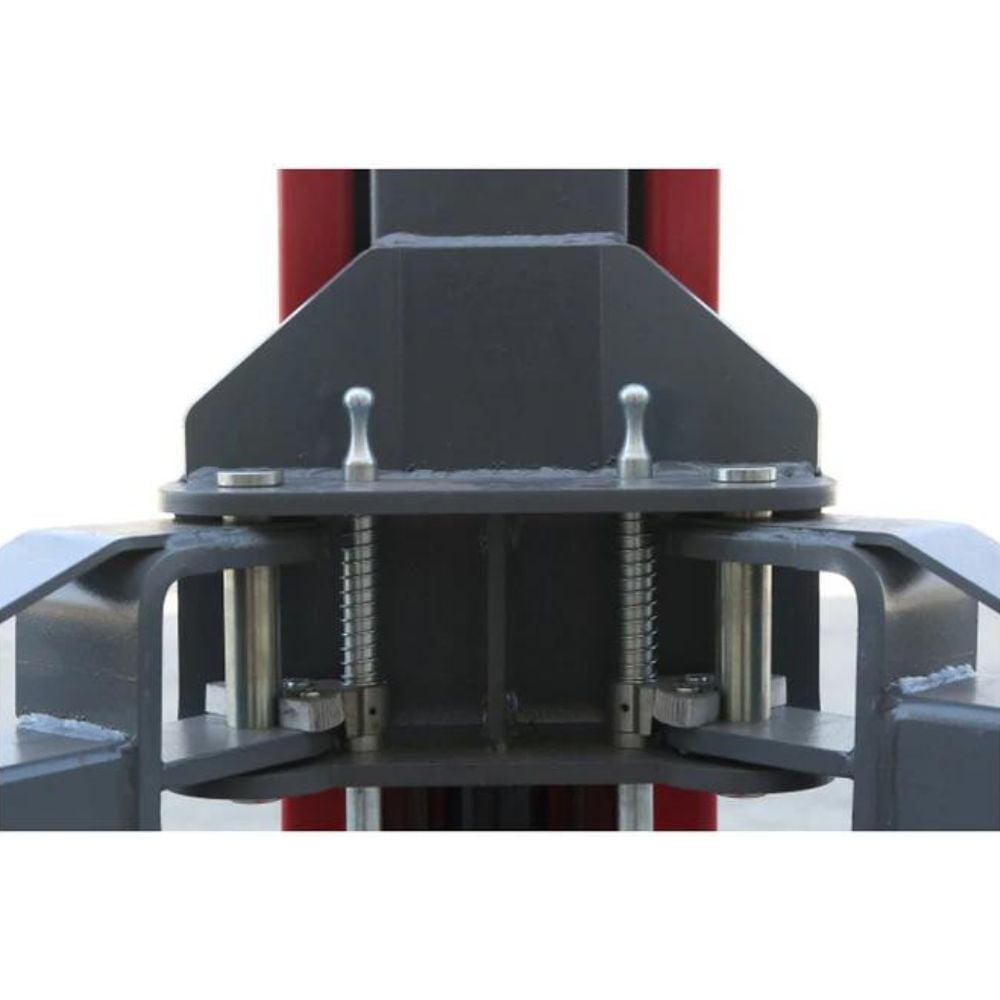

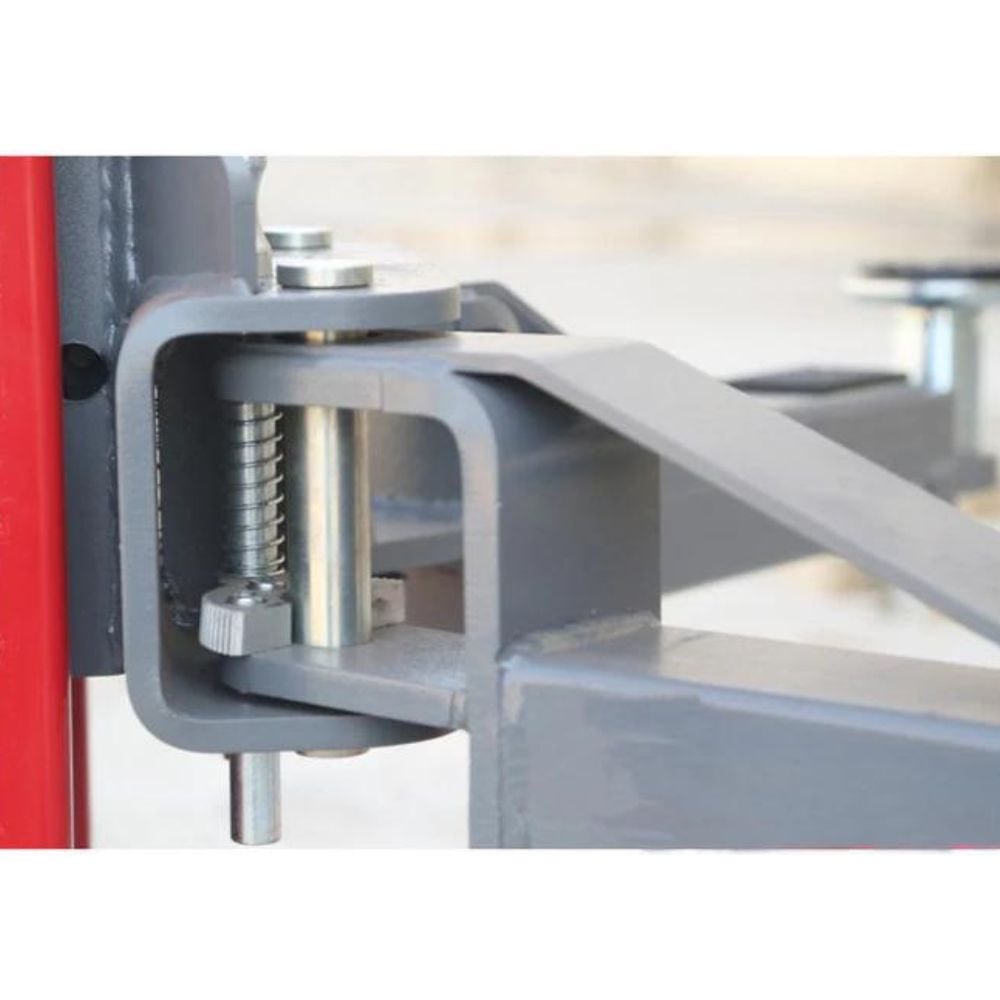

- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Heavy duty 5/16″ diameter cable and 4.56″ pulley reduce high stress on synchronization process and increase cable life
- Stiffened base plate 0.63″ thickness
- Ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down
- Anchor bolts/mounting hardware included
Specifications
| Model | AL-100XH |
| Capacity | 10000 lbs. |
| Max Lift Height | 75″ (1900mm) |
| Minimum Pad Height | 4.33″ (110MM) |
| Overall Height | 111″ (2820mm) |
| Overall Width | 135″ (3430mm) |
| Width Between Columns | 110″ (2750mm) |
| Drive thru Clearance | 110″ (2750mm) |
| Lifting Time | 45-60s (Adjustable) |
| Lowering Time | 30s (Adjustable) |
| Motor Power | 2.2kw |
| Voltage | 220V, 1ph |
| Noise | <70db |
| Net Weight | 1135lbs. |
| Gross Weight | 1235 lbs. |
| Lift Packing size | 111″x18″x29″ |
| Pump Packing size | 36″x12″x14″ |
