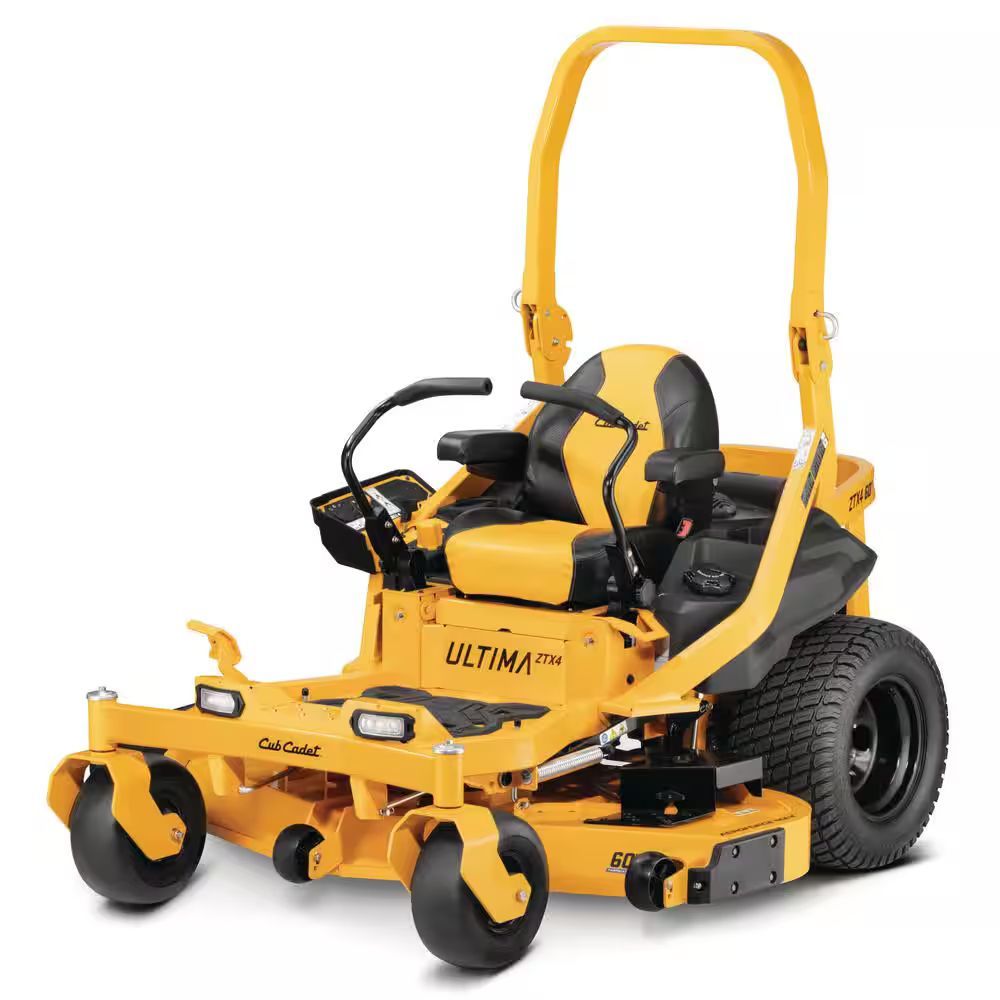

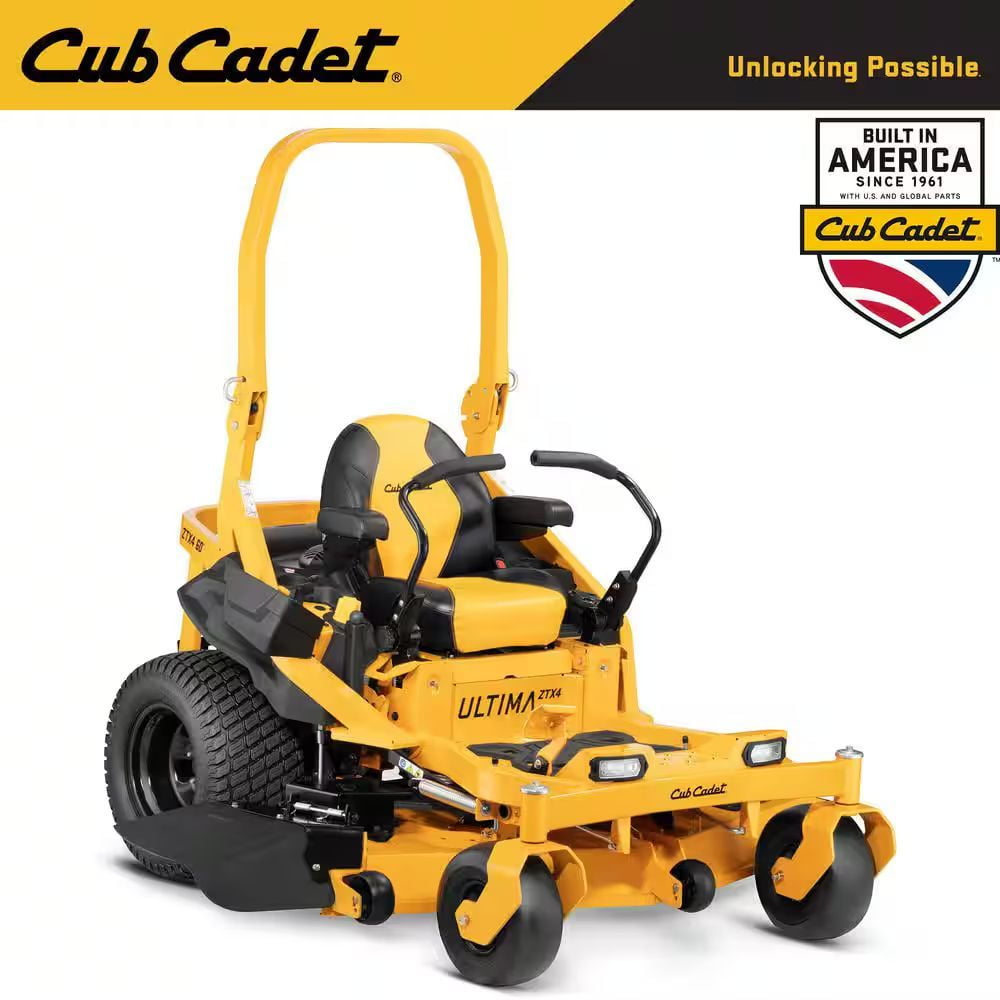

Introducing the all new Ultima Series ZTX-another step up in Cub Cadet’s ultimate mowing experience. The Cub Cadet ULTIMA Series ZTX4 60 in. 24 HP Kohler KT7000 Series Twin-Cylinder Zero-Turn Riding Mower was built to raise the bar for durability without sacrificing operator comfort and is packed with commercial-grade features. Starting with the robotically welded 10-Gauge AeroForce Max fabricated steel deck with side, top and leading-edge reinforcements is engineered for greater airflow, to make sure clippings move through the deck cleanly and efficiently providing superior bagging performance that was specifically designed to prevent clumping and blockage. Fully adjustable, premium 20 in. high back seat with cushioned armrests, ergonomically-designed lap bars, spring-assist deck lift and rubber floor mat allow you to comfortably cut at your maximum speed up to 8mph for an extended amount of time. The 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while an open frame design provides optimal leg room and a hinged/removable floor pan allows quick and easy access to the deck and engine for ease of maintenance. Ideal for mowing slight rolling hills and several obstacles from 4 to 12 acres. The 4-year/500-hour product warranty will provide you the ultimate peace-of-mind.
Highlights

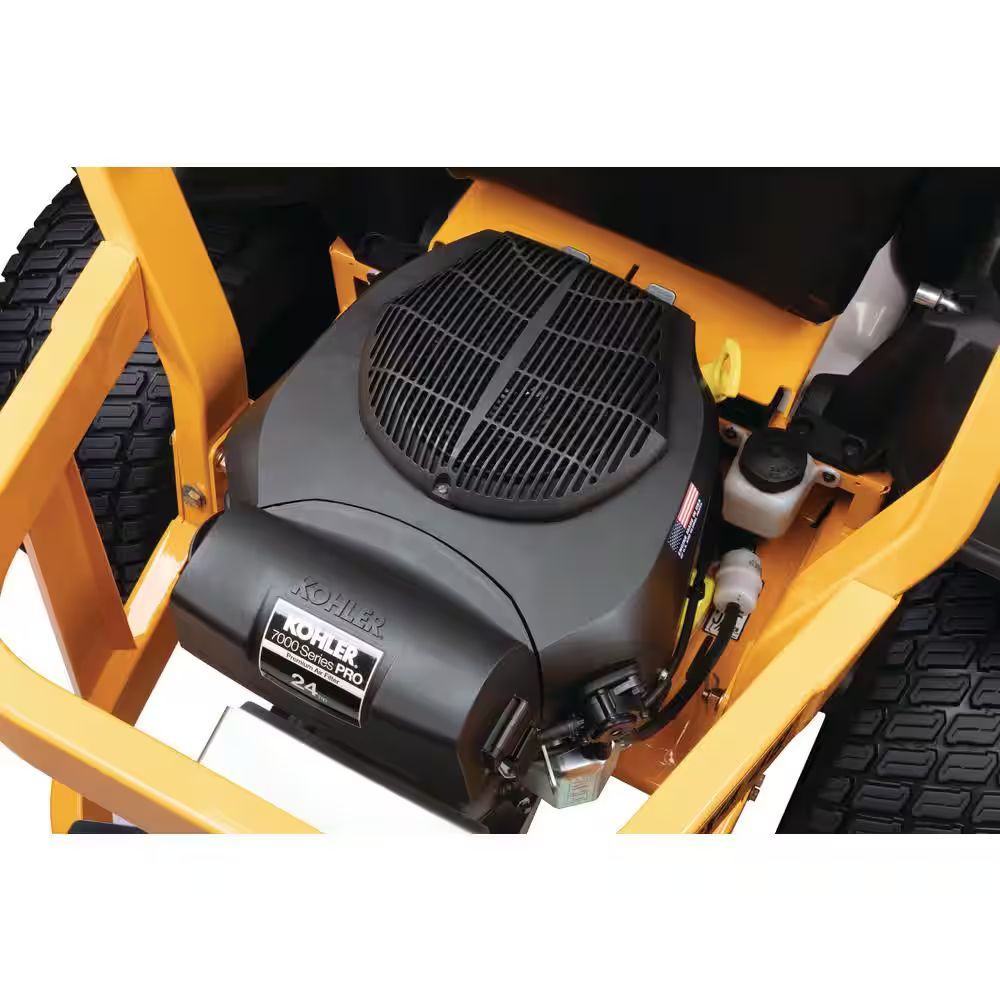

- 24 HP 725 cc professional-grade KOHLER KT-Pro 7000 series V-twin OHV engine for reliable starting and exceptionally smooth, quiet operation
- Commercial-grade dual Hydro-Gear ZT-3100 provides hydrostatic rear-wheel transmissions for quick and effortless 8 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds, that quickly leaves your lawn with a professional-quality finish
- Tough and tubular frame the high-strength, continuous square 1.5 in. x 3 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear

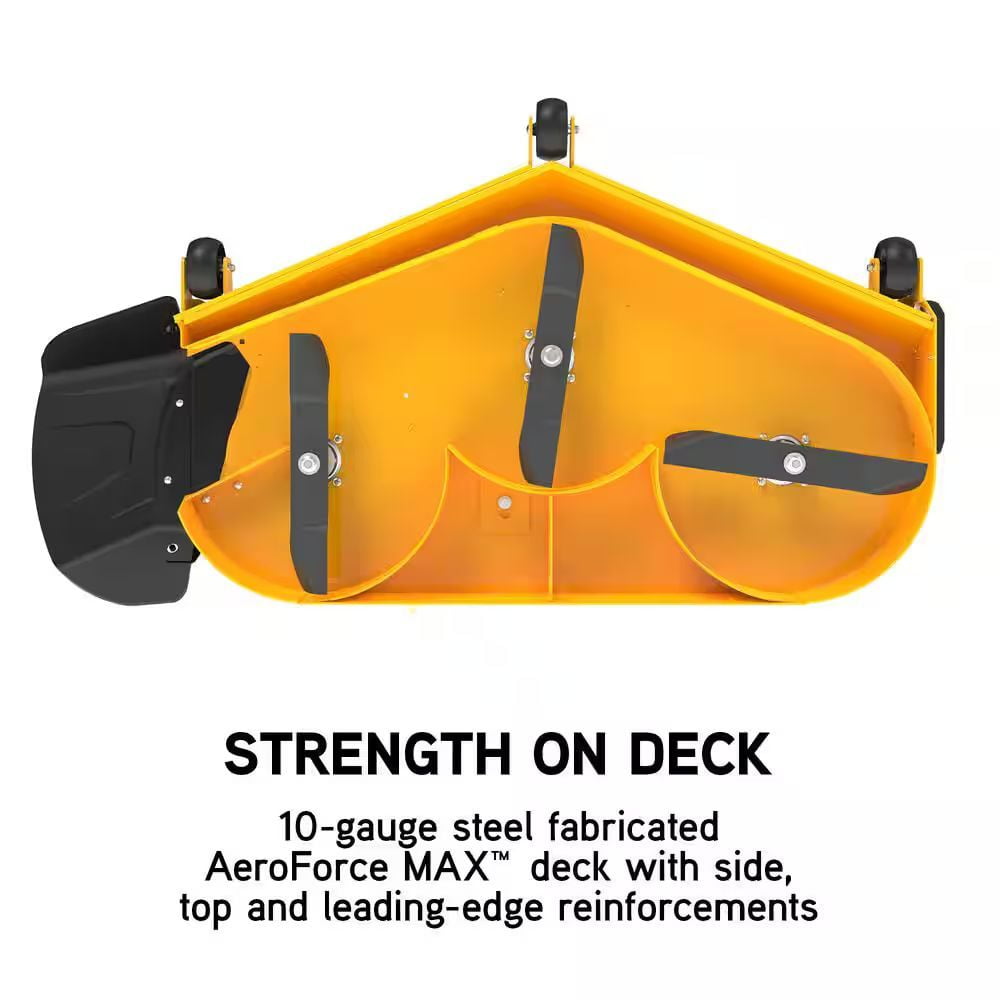

- 60 in. AeroForce Max 10-Gauge reinforced fabricated steel cutting deck with maintenance free spindles, smooth arc triple-blades, cut overlap and deep dome deck design provide flawless results, mows a wide area of grass to help reduce cutting time, rust-resistant and helps resist corrosion and provides your lawn with a clean-cut look
- Dial in your perfect cut with a foot operated deck lift and a dial control knob offering 17 deck height adjustments, including transport mode, from 1 in. to 4.75 in. leading to a precise and even cut

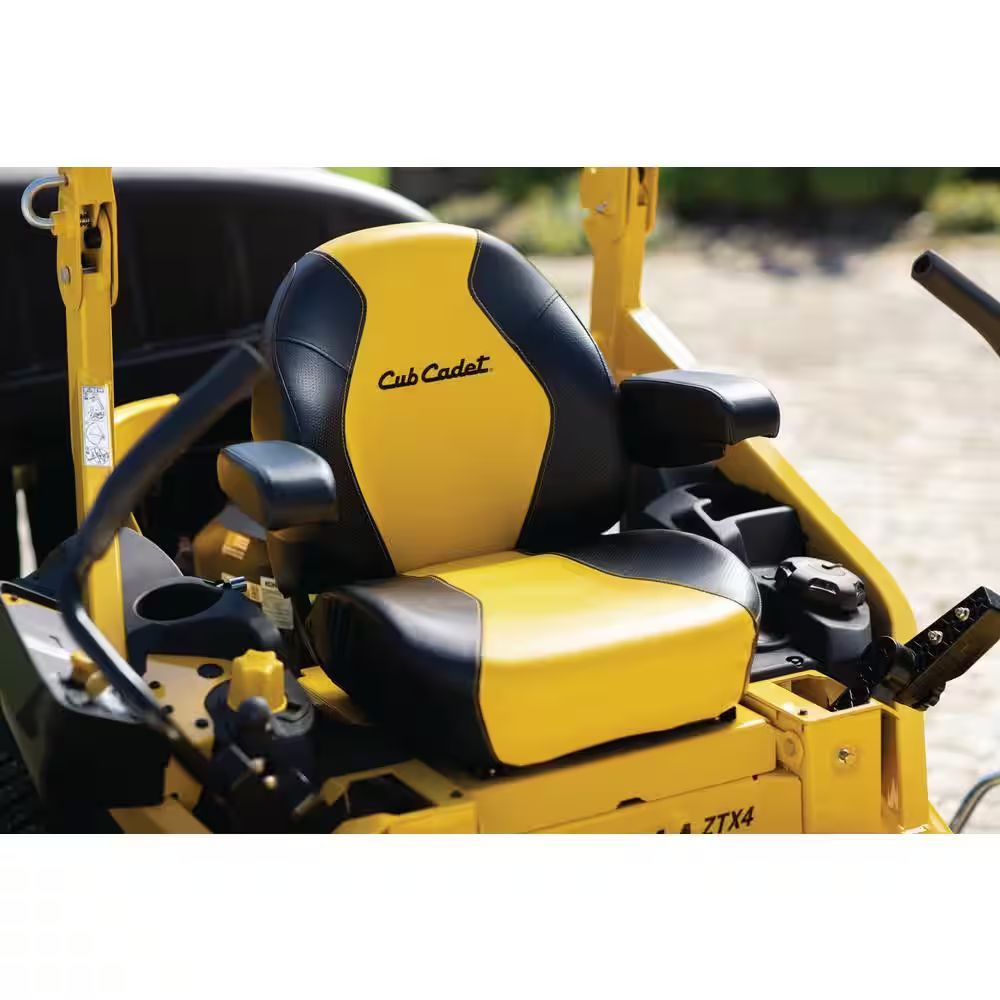

- High comfort, high performance an automotive-inspired, ergonomic, fully adjustable premium 20 in. high back adjustable seat with cushioned armrests, adjustable lap bars and industry-exclusive ergonomic hand grips optimized for comfort providing you the confidence to maximize your speed and reduce operator fatigue

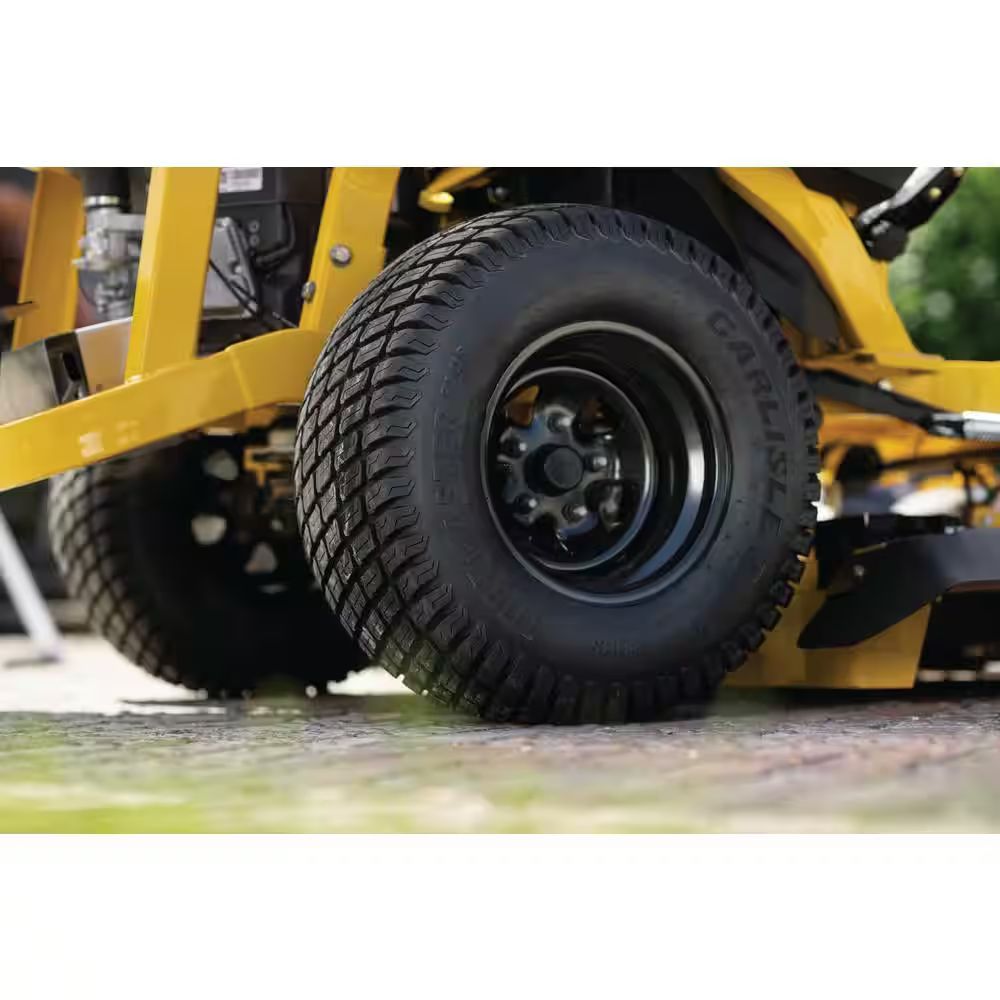

- Turf damage prevention 13 in. x 6.5 in. to 6 in. smooth tread front wheels pivot 180 degree without turf damage, 22 in. x 12 in. to 12 in. turf master premium rear tires offer excellent traction, minimize turfing and provide a better ride on uneven ground at higher speeds
- Ease of maintenance an open frame design and hinged/removable floor pan allow easy access to the deck and engine for quick and simple maintenance

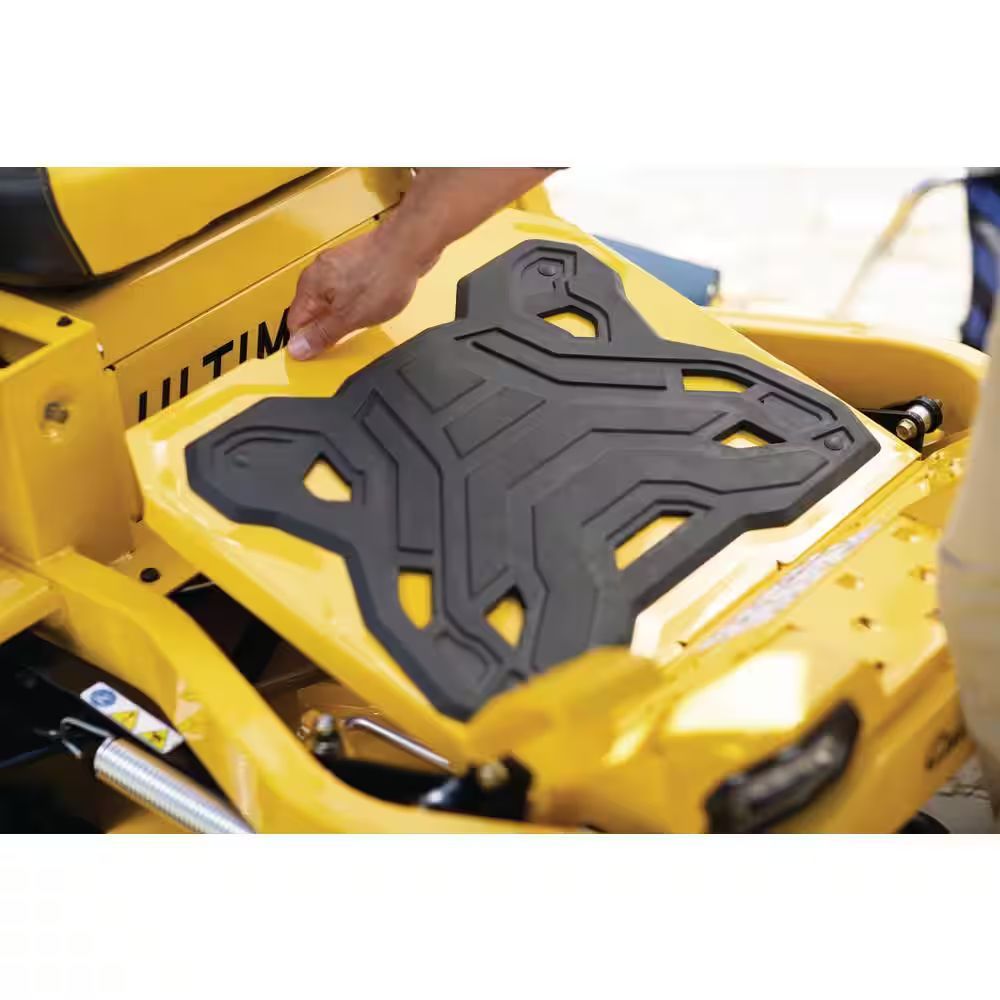

- Command center conveniently located control panel enhances operator productivity and vibration-dampening soft rubber floor mat provides sure footing, comfort and ample leg room
- Precision trimming offset front casters align with blade edge for trimming precision while maintaining line-of-sight and stable balance

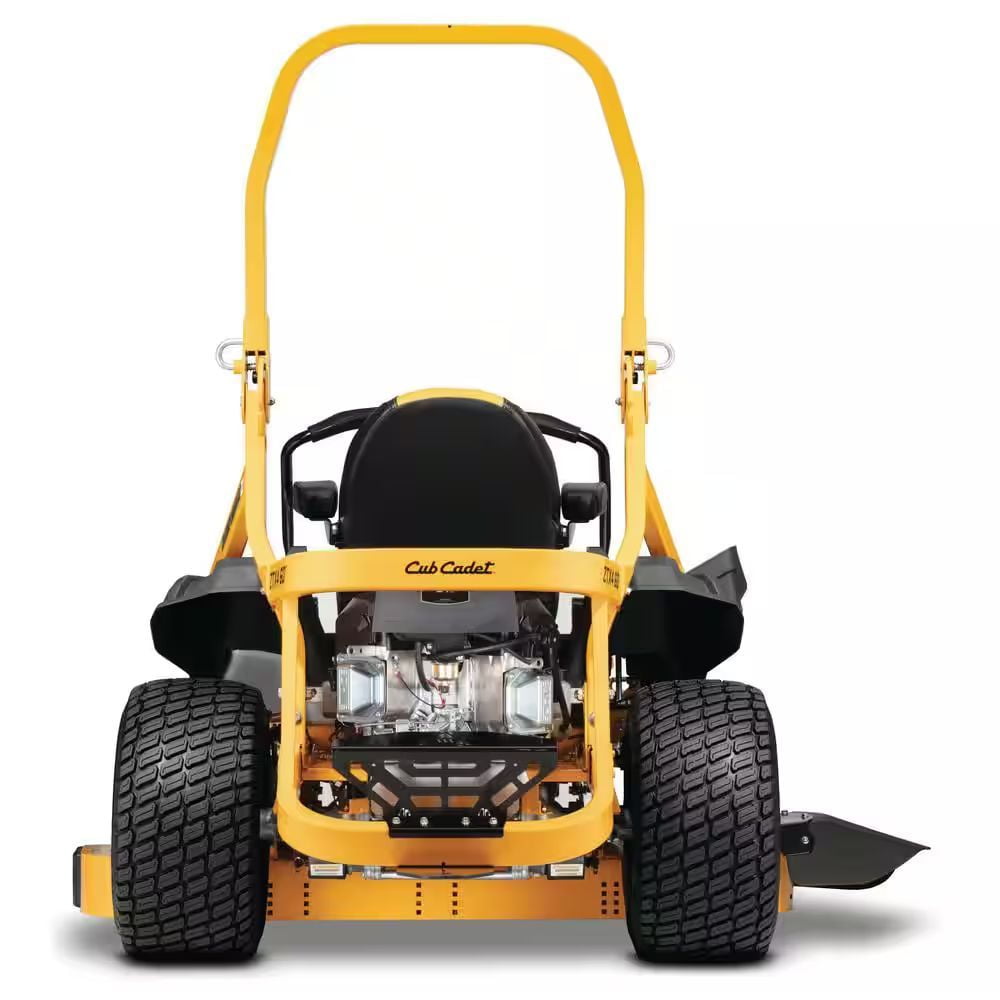

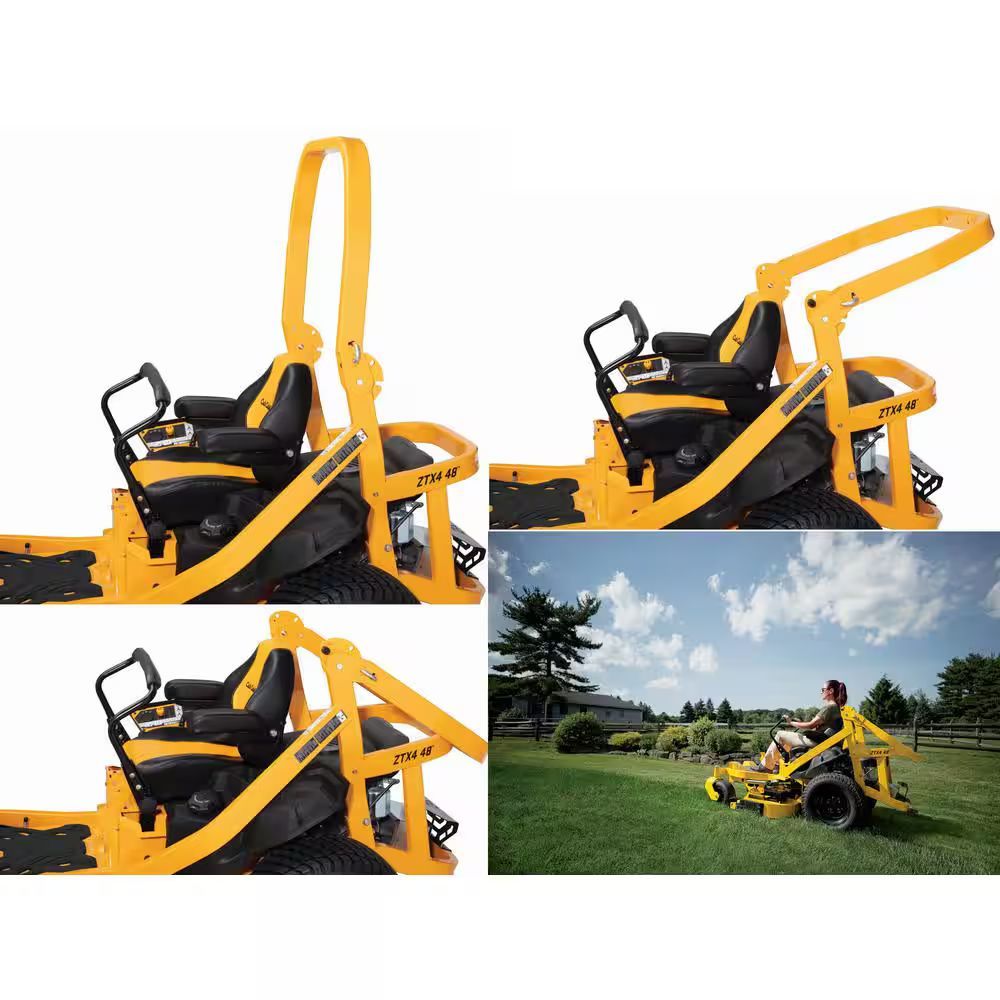

- Rollover protective system (ROPS) standard
- Illuminating dual-LED headlights provide ultimate vision for mowing in low light conditions and tow hitch come standard
- Mow for an extended period of time: 5.5 Gal. fuel tank capacity to keep you mowing and minimize time loss for refueling needs
- Electronic fingertip blade engagement PTO allows for smooth operation of the deck or attachments
- 3-way adjustable ergonomic lap bar design with integrated parking brake and mow-in-reverse, provides comfort with a simple operation

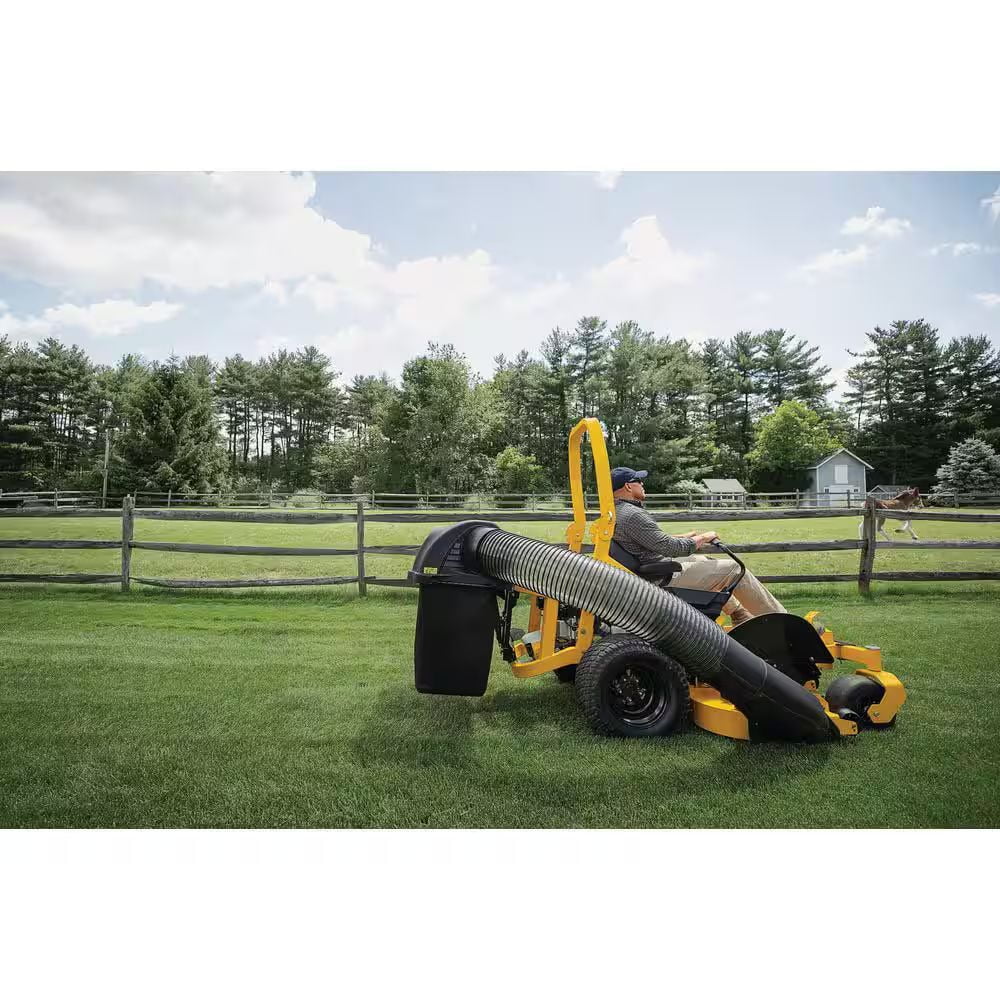

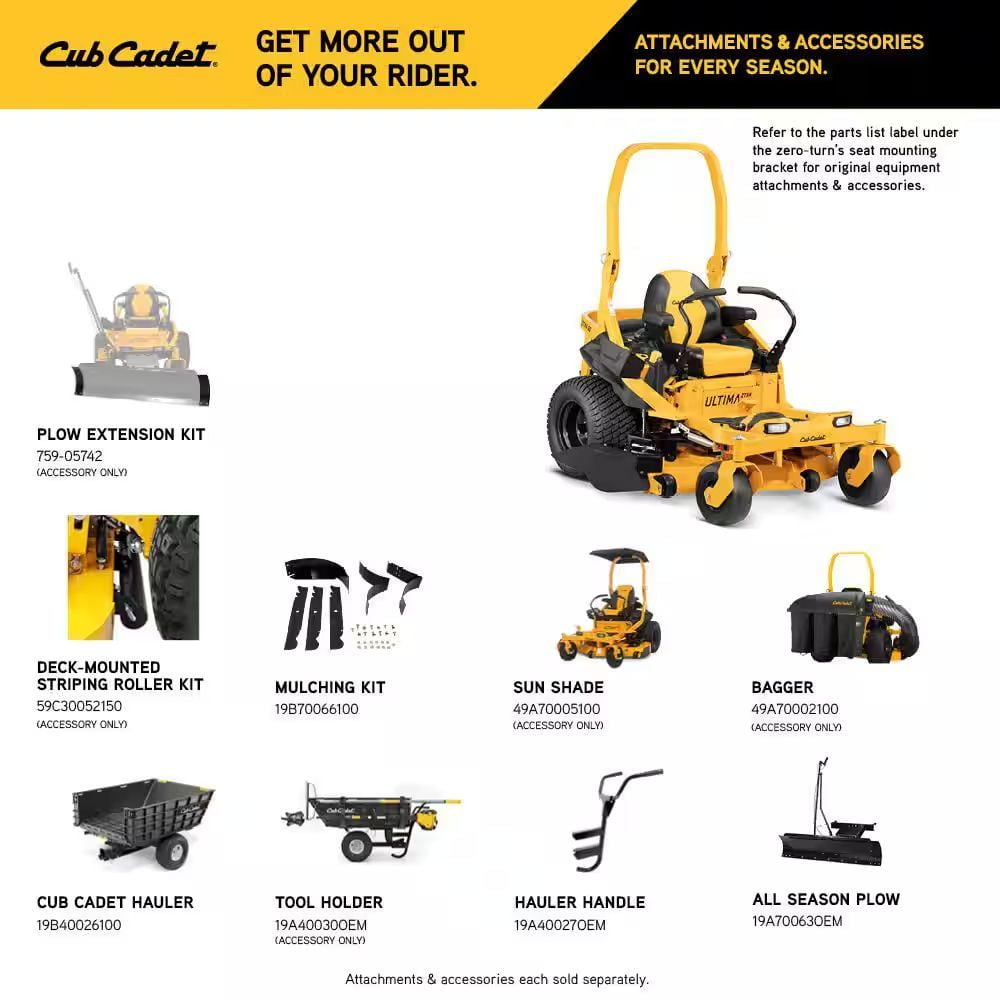

- Expand your mower’s capabilities: full lineup of premium attachments and accessories include baggers, mulch kits, carts and many other attachments
- Strongest warranty in its class: 4-year/500-hour warranty; limited lifetime frame and fabricated deck shell warranty
- Cub Cadet ZTX4-60 comes fully crated and fully assembled upon arrival
Specifications
Dimensions
| Assembled Depth (in.) | 88 in | Assembled Height (in.) | 53 in |
| Assembled Width (in.) | 65 in | Cutting Width (in.) | 60 inches |
| Front Wheel Size (in.) | 13 | Mower Deck Width (in.) | 60 in |
| Rear Wheel Size (in.) | 22 | Turning Radius (in.) | 0 |
Details
| Assembly Required | No | Commercial / Residential | Commercial |
| Cutting Options | Side-Discharge | Deck Material | 10 Gauge Steel |
| Deck Type | Fabricated | Drive Type | Rear-wheel Drive |
| Engine Displacement (cc) | 725 | Engine Make | Kohler Engine |
| Engine Torque (ft.-lb.) | 0 | Fuel Tank Capacity (gal.) | 5.5 gal |
| Horsepower (HP) | 24 hp | Included with Riding Mowers | Battery(s), Engine Oil, Roll Bar |
| Lawn Mower Type | Zero Turn Mower | Maximum Cutting Height (in.) | 4 in |
| Maximum Forward Speed (mph) | 7.5 | Maximum Reverse Speed (mph) | 3.5 |
| Minimum Cutting Height (in.) | 1.5 in | Mower Size | Large |
| Number of Blades | 3 blades | Number of Cylinders | V-Twin |
| Number of Deck Wheels | 3 | Oil Capacity (oz.) | 64 |
| Power Type | Gas | Product Weight (lb.) | 1092 lb |
| Recommended Oil Type | 10W-30 | Refurbished | No |
| Riding Mower Features | Adjustable Cutting Height, Adjustable Handlebar, Adjustable Speed, Assembly Required, Battery level indicator, Built-in Hitch, Cup Holder, Deck cleanout, Headlights, Hour Meter, Keyed start, Pneumatic Tires, Reverse Mowing, Rollover protection, Rust resistant deck, Single-lever height adjustment, Swivel Wheels | ||
| Size of Yard | 4 or More Acres | Start Type | Electric |
| Terrain Type | Flat with Obstacles, Hilly | Transmission Type | Hydrostatic |
Warranty / Certifications
| Certifications and Listings | No Certifications or Listings | Manufacturer Warranty | 4-Year/500 Hour Limited Warranty |
Reviews
There are no reviews yet.
